Product Information
Compatible with TQSoft version 6
The PR140 is a rugged, high precision, pressure data logger that is built for use with sterilisers and harsh environments.
The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from 20 °C to +140 °C (68 °F to 284 °F). The PR140 can be programmed to take readings as often as once per second (1 Hz), and has non-volatile memory that can store up to 32,700 measurements.
The PR140 is a pressure data logger designed for use in steriliser validation and mapping. This rugged data logger can withstand temperatures up to 140°C and is completely submersible (IP68). The PR140 is built with a precision stainless steel pressure gauge.
Supplied with (at extra cost):
- Traceable Calibration Certificate
- Eyelet Fitting

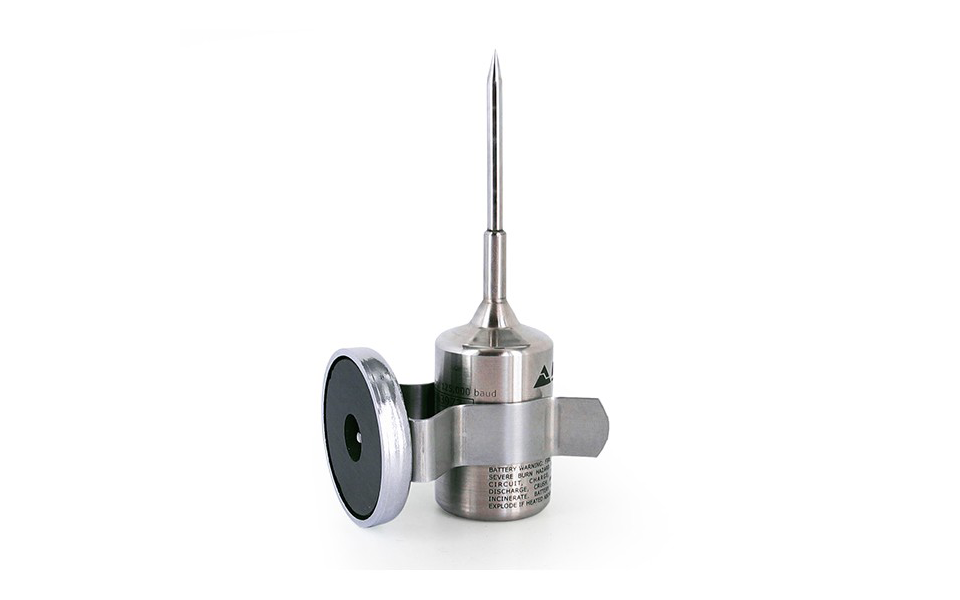

- Magnetic Holder
| Users of TQSoft v6 can take advantage of using the MadgeTech range of wireless data loggers with ther existing test specifications in TQSoft and report templates created in IPReports. |
Product Specifications
| Pressure Range | 0 to +5 bar absolute |
| Operational Environment | -40°C to +140°C |
| Calibrated Accuracy (Over a range +20°C to +140°C) |
±0.03 bar gauge |
| Pressure Probe Type | Semiconductor Strain Gauge |
| Pressure Resolution | 0.1 mBar (0.0015 PSIA) |
| Memory | 32,700 |
| Reading Rate | 1 reading every second |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at 25 °C/77 °F) User Replaceable Battery |
| Body Dimensions | 2.29 in x 1.0 in dia. (58.2 mm x 25.4 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -20 °C to +140 °C (-4 °F to +284 °F) 0 %RH to 100 %RH Note: The PR140 may be used above 60 °C for up to 8 hours, per 24 hour period. |
| Interface Required | IFC400 |
| Approvals | CE |
MadgeTech PR140 Wireless Data logger
Add to FavoritesRemove from Favourites
Add to Favorites
£1,005.41excl VAT
SKU: PR140
Product Features
Specifications:
- Operating Range 0 to +5 bar absolute
- Operational Environment -40°C to +140°C
- Calibrated Accuracy ±0.03 bar
(Over a range +20°C to +140°C) - Pressure Resolution ±0.1 mBar
±
- One Scan per Second
- Data is downloaded to the computer via a USB or serial download pad
- Submersible
Adapter Type:
1/8″ NPT Pressure Port
